Grade three alloy steel hydraulic hoisting machinery series

点击:    时间:2017-05-13 09:08:11

Product features:

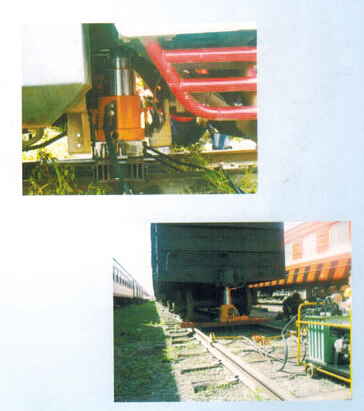

Convenient and flexible to operate; safe and reliable; suitable for hoisting vehicles.

Oil cylinder and transverse beam are made from special alloy steel with long term to work.

Several stages of oil cylinder get to position at the same time, no need for auxiliary device;

 rescue worker could work away from the accident pot

Transverse car can move automatically with anti-sliding device.



\

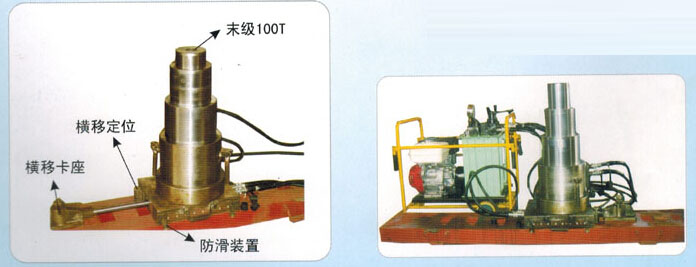

Oil cylinder body height

280mm

The first stage oil cylinder load

400t

The second stage oil cylinder load

200t

The third stage oil cylinder load

100t

Oil cylinder total distance

450mm

Oil cylinder body weight

120kg

Transverse beam ( Alloy steel)

2000*280*120mm

Transverse beam body weight

130kg

Transverse car ( Alloy steel)

400*400*100

Basic assembly height

540mm

Hoisting highest height

900mm
