Manual hoisting equipment
点击： 时间：2017-05-13 09:20:58
Product features:
Suitable for the rescue and hoisting after slight derailment of vehicle
Lift up or move laterally the car body or axle swiftly and correctly
|
model |
material |
Assembly height |
highest height |
|
TQH-06 |
The titanium alloy forging |
450mm |
1000mm |
|

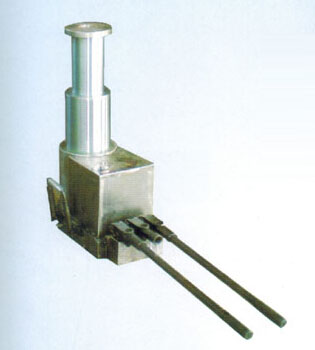

Integrated cylinder |
|||
|
The first stage cylinder load |
100T |
The first stage cylinder stroke |
200mm |
|
The second stage cylinder load |
50T
|
The second stage cylinder stroke |
200mm |
|
weight of cylinder body |
55kg |
Height of cylinder body |
330mm |
|

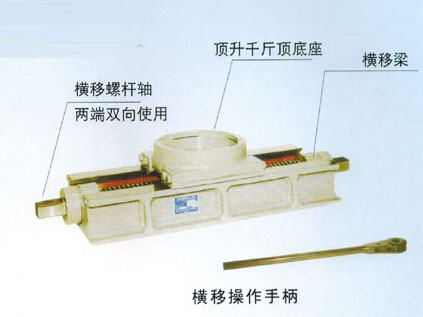

Screw sliding beam |
|
|
Work load |
40T |
|
Distance |
0-500mm |
|
Screw clearance |
0-20mm each time |
|
Screw force |
<20kn |
|
Approximate weight |
40kg |
|
Operating handle |
2 |
|
Size |
1000*360*120 |
